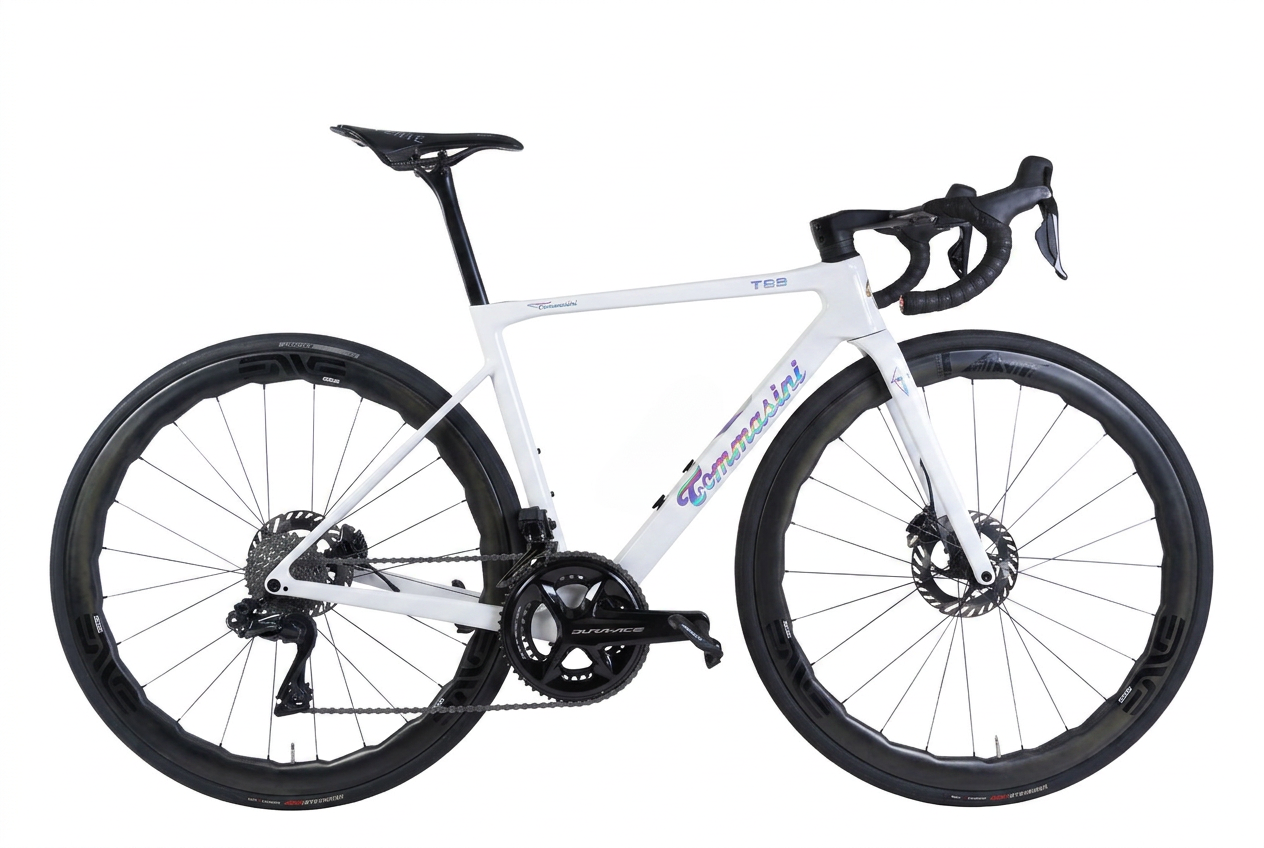

A
Bianco Iride
White frame · Holographic decals
A clean white canvas brought to life by holographic decals that shift through the spectrum as the bike moves. Quiet at rest, electric in motion.
Frame
Bianco
Decals
Holographic
TommasiniCycles · Grosseto
Download PDFDealer Edition · Mini Catalogue
T68
Five finishes, one machine.
A curated selection of five custom liveries on the T68 carbon road frame, prepared for our international dealer network. Each frame is hand-finished in Grosseto, Italy — decals are stickers.
View technical specifications

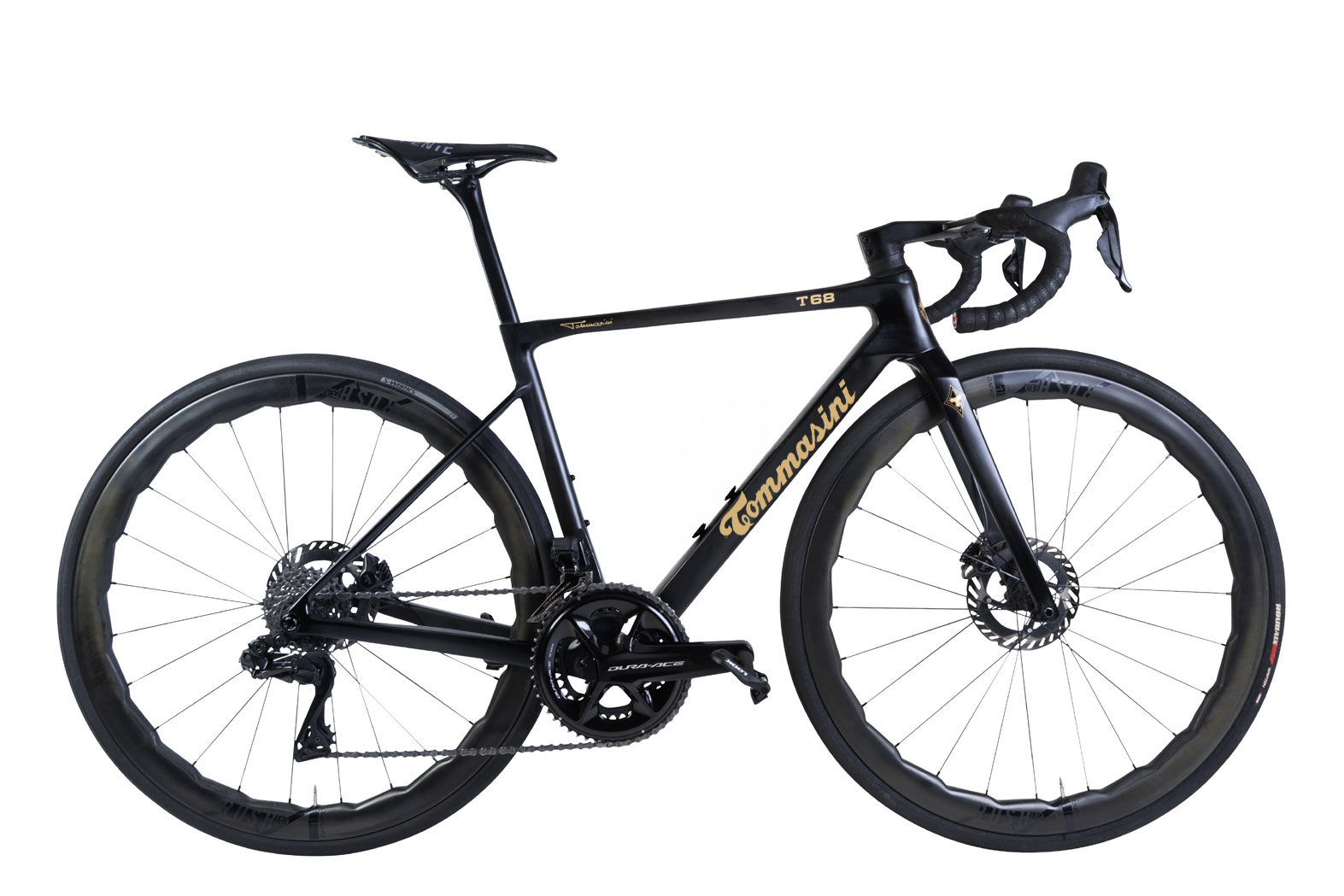

Reference frame · Nero / Oro
The Five FinishesA — E

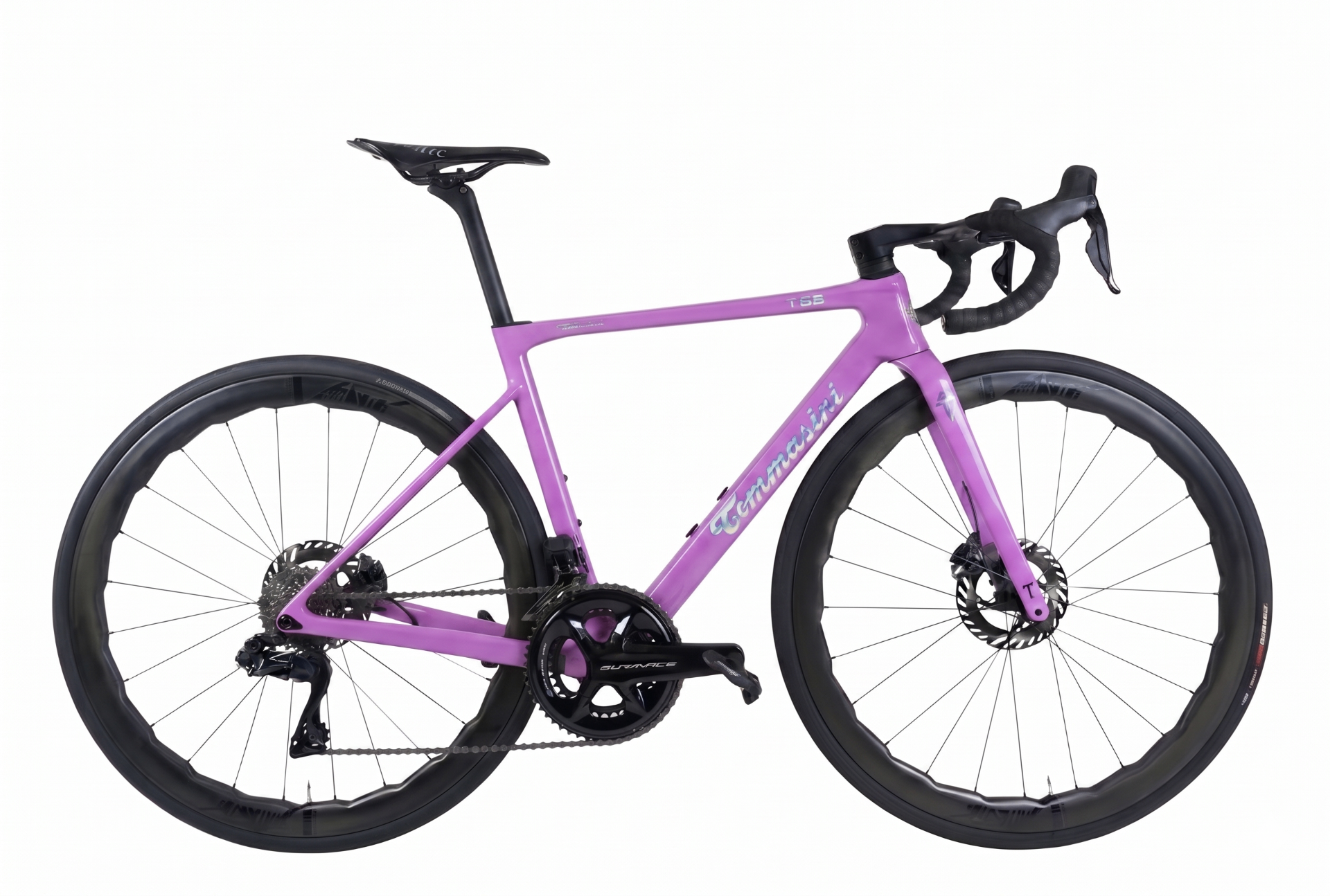

B
Lilla
Lilla frame · Holographic decals
A luminous lilac laid down in uniform lacquer across the full frame. Light and unmistakable on its own, brought to life by holographic script that catches every change of light.
Frame
Lilla
Decals
Holographic
C
Bianco Oro
White frame · Gold decals
The reference. White lacquer and warm metallic gold lettering — the most enduring Tommasini livery, distilled onto the T68 carbon platform.
Frame
Bianco
Decals
Oro

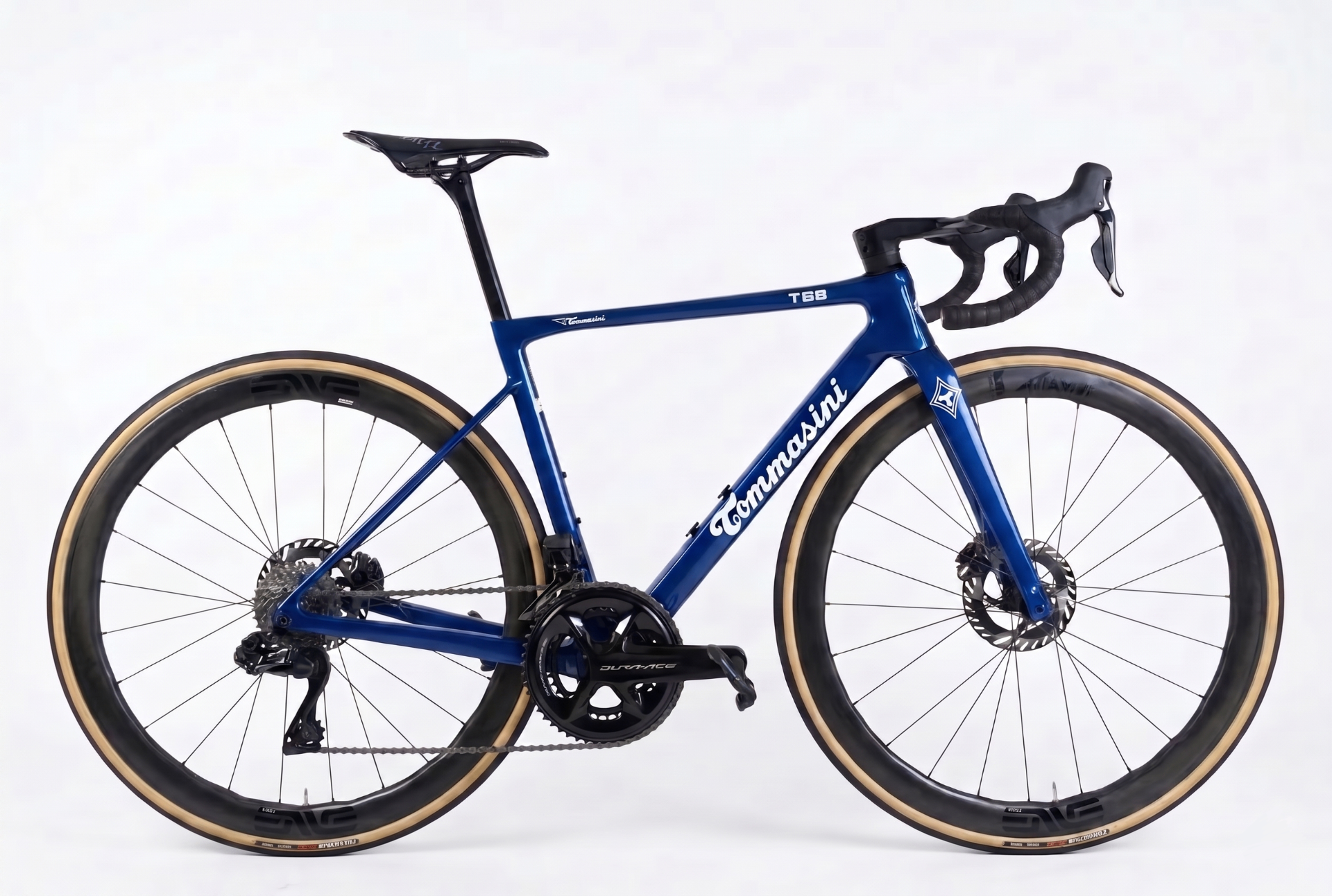

D
Blu Racing
Blu Racing frame · White decals
A pure racing blue, lifted by crisp white script. Built for riders who want their machine to look as fast standing still as it does at speed.
Frame
Blu Racing
Decals
Bianco

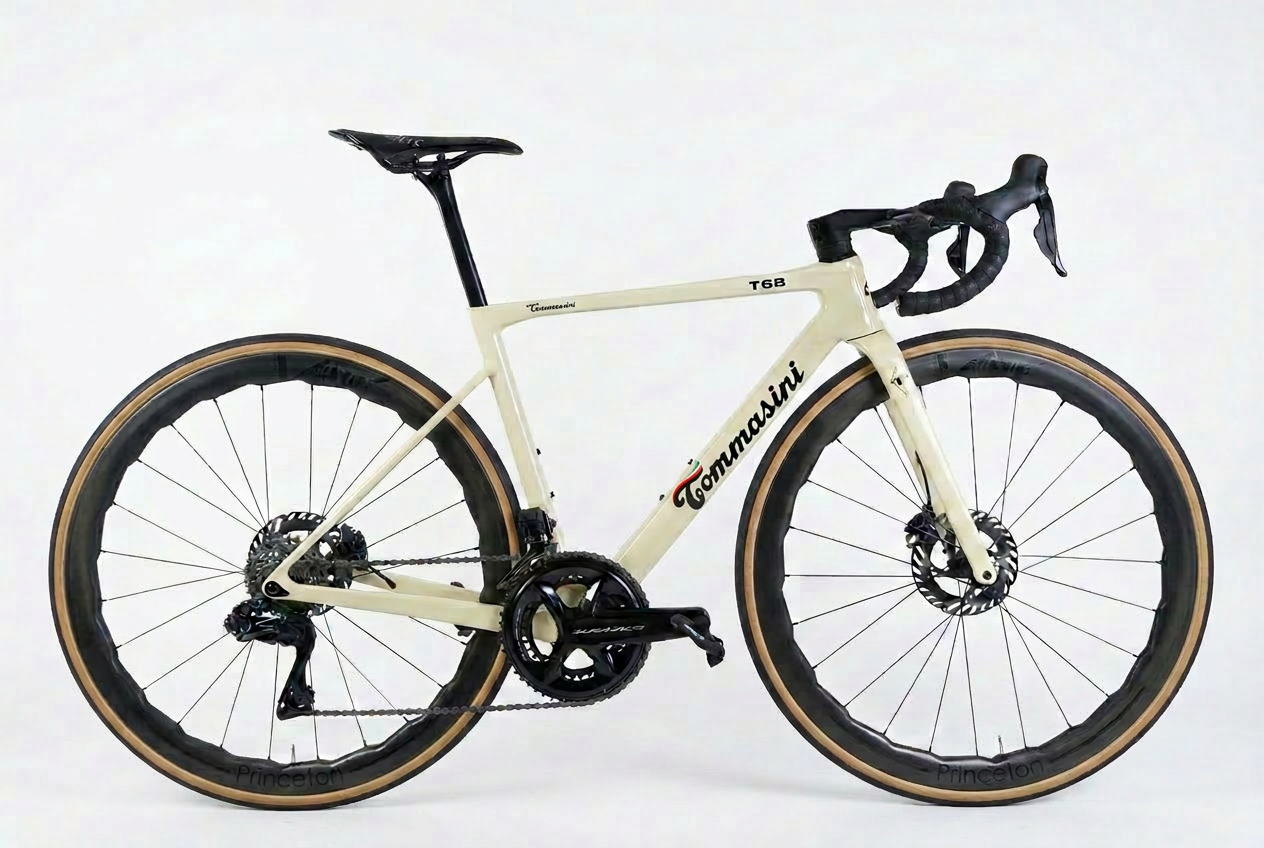

E
Crema Tricolore
Frame #380 · Black decals · Tricolore logo
Warm cream lacquer 380 with the historic Tommasini script in deep black on the down tube — and the Italian tricolore woven into the logo itself, a small green-white-red pennant flying from the tip of the capital T. Restrained, patriotic, and unmistakably ours.
Frame
#380
Decals
Nero
Technical Specifications
Platform, geometry and frame compatibility of the T68 carbon road frame.
Platform
The frame
- Frame weight
- 780 g
- Material
- High-Modulus Toray T1000 carbon (frame, fork, handlebar, seatpost)
- Type
- Road · disc brakes
- Design
- Optimised for stiffness and power transfer
- Sizes
- 50 · 52 · 54 · 56 · 58
- UCI
- Approved
Geometry
Five sizes
A complete size run from 50 to 58, each frame hand-finished in Grosseto.
| SIZE | S | TT | SA | HT | HA | F | OT | WB | FC | RC | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 447 | 520 | 73.5° | 95 | 71° | 368 | 45 | 972 | 572.2 | 410 | 69 | 367 | 500 |
| 52 | 467 | 528.7 | 73.5° | 110±0.5 | 72° | 368 | 45 | 973 | 573 | 410 | 69 | 371 | 517.1 |
| 54 | 493±1 | 551.5 | 73° | 134±0.5 | 73° | 368 | 45 | 982 | 582 | 410 | 69 | 388 | 536 |
| 56 | 515 | 563.5 | 73° | 151±0.5 | 73° | 368 | 45 | 994 | 593.9 | 410 | 69 | 395.1 | 552.2 |
| 58 | 546 | 583.4 | 73° | 185 | 73° | 368 | 45 | 1014 | 614 | 410 | 69 | 402.7 | 592.5 |
All values in millimetres unless marked as degrees.
- S
- seat tube length
- TT
- top tube (horizontal)
- SA
- seat angle
- HT
- head tube length
- HA
- head angle
- F
- fork length
- OT
- fork offset / rake
- WB
- wheelbase
- FC
- front centre
- RC
- rear centre (chainstay)
- G
- bottom-bracket drop
- REACH
- BB to head-tube top, horizontal
- STACK
- BB to head-tube top, vertical
Frame Compatibility
Build it your way
- Tyre clearance
- up to 700×32C (min 4 mm side clearance, tyre fitted)
- Front thru-axle
- 100×12 mm, P1.5 — 8–9 Nm
- Rear thru-axle
- 142×12 mm, P1.0 — 8–9 Nm
- Brake rotors
- 140 / 160 mm (default: 160 front · 140 rear)
- Derailleur hanger
- UDH (universal standard) — 12 Nm
- Seatpost
- carbon · 400 mm · 15 mm offset · cut-to-length
- Stem clamp diameter
- 28.6 mm
- Max system weight
- 100 kg / 220 lb (rider + gear + cargo)
- Intended use
- paved road only
Reference
Colour palette
Codes refer to the Tommasini 2026 colour book. Hex values are indicative for screen reproduction only.
Lilla
#C468DE
380
#f0efdc
Blu Racing
#0047bb
Bianco
#ffffff
Nero
#1a1a1a
Oro
#c8a24a
